Electronic Ignition

Brief Describe ：

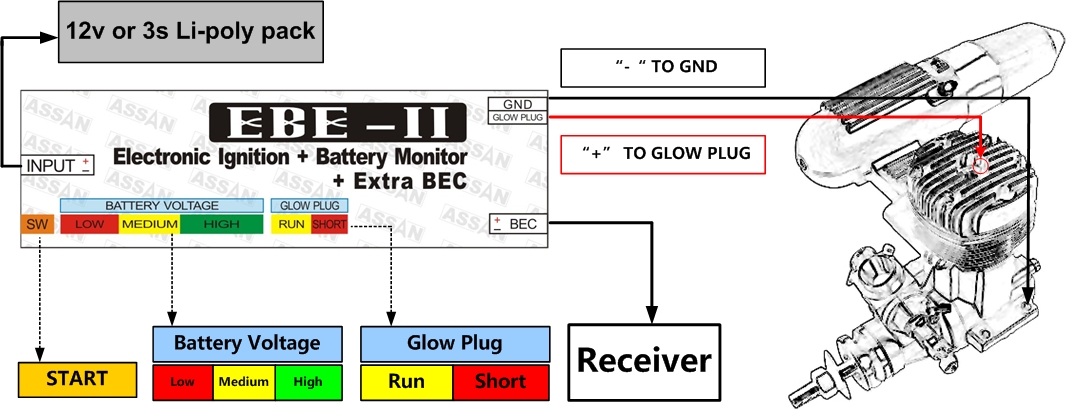

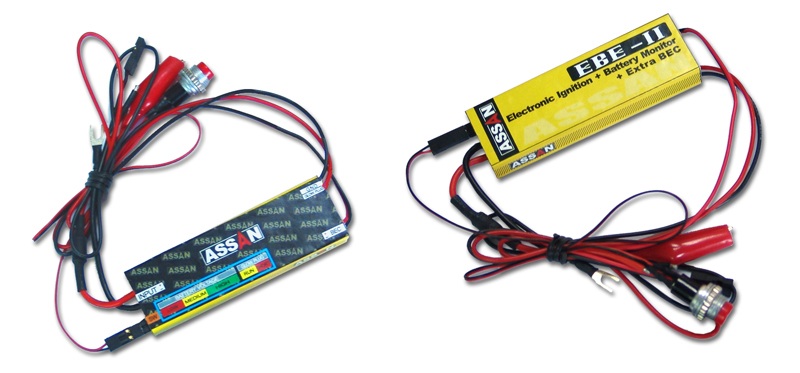

EBE-II include Electronic Ignition, Battery Voltage Monitor and UBEC, 3 In 1 on board. it's solid and easy use. especially for that with narrow engineer operate space and not easy apply traditional Ignition.

Features ：

•  Switch control delay engineer start ；
•  LED indicate Ignition working or not ；
•  Line LED ' s show batter voltage ；
•  12V or 3s Li-poly pack as power supplier ；
•  Isolate output in UBEC and Ignition ；
•  Short protect ；
•  Anti incorrect input direction ；

Work Condition ：

•  Input Voltage： DC 12v
•  Max Ignition Current ： 3Amp
•  UBEC current ： 3Amp continous,5Amp Max.
•  Heat Glow Plug time ： 10s
•  Idle current ： 10mA~100mA
•  Size ： 80 X 24 X 9mm
•  weight ： 20g （ not include wires ）

Download EBE- Ⅱ Instruction
